您现在的位置：首页->技术参数玻璃钢立式容器参数表
添加时间：2012/6/2 | 文章录入：本站 | 文章来源：原创
|
公称容积 (m3) |
计算容积 (m3) |
罐体尺寸 |
顶盖矢高 |
入孔直径 |
出料口 |
厚度 |
约计重量 |
|
|
D |
H |
|||||||
|
5 |
5.63 |
1600 |
2800 |
250 |
450 |
50 |
18 |
557 |
|
10 |
10.05 |
2000 |
3200 |
300 |
450 |
50 |
20 |
892 |
|
15 |
15.2 |
2200 |
4000 |
350 |
500 |
50 |
20 |
1200 |
|
20 |
20.8 |
2400 |
4600 |
400 |
500 |
80 |
20 |
1469 |
|
25 |
25.48 |
2600 |
4800 |
450 |
500 |
80 |
25 |
2108 |
|
30 |
30.78 |
2800 |
5000 |
480 |
500 |
80 |
28 |
2663 |
|
50 |
49.48 |
3000 |
7000 |
500 |
500 |
100 |
35 |
4830 |
|
65 |
65.02 |
3000 |
9200 |
500 |
500 |
100 |
40 |
6939 |

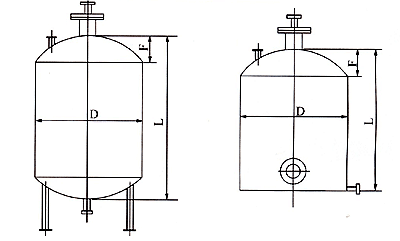

立式容器参数表
 |
|
m3\L\D
|
400 |
600 |
800 |
1000 |
1200 |
1400 |
1500 |
1000 |
1800 |
2000 |
2200 |
|
0.1 |
850 |
430 |
|
|
|
|
|
|
|
|
|
|
0.2 |
1650 |
780 |
490 |
|
|
|
|
|
|
|
|
|
0.5 |
|
1840 |
1090 |
740 |
|
|
|
|
|
|
|
|
1
|
|
|
2080 |
1380 |
|
|
|
|
|
|
|
|
2 |
|
|
|
2650 |
1890 |
1440 |
|
|
|
|
|
|
3 |
|
|
|
|
2780 |
2090 |
1850 |
|
|
|
|
|
4 |
|
|
|
|
3660 |
2740 |
2410 |
2150 |
|
|
|
|
5 |
|
|
|
|
|
3390 |
2980 |
2650 |
|
|
|
|
6 |
|
|
|
|
|
|
3550 |
3140 |
|
|
|
|
7 |
|
|
|
|
|
|
|
3640 |
2930 |
|
|
|
8 |
|
|
|
|
|
|
|
4140 |
3320 |
|
|
|
9 |
|
|
|
|
|
|
|
4630 |
3710 |
3060 |
|
|
10 |
|
|
|
|
|
|
|
5130 |
4100 |
3370 |
|
|
11 |
|
|
|
|
|
|
|
5630 |
4500 |
3690 |
3100 |
|
12 |
|
|
|
|
|
|
|
|
4890 |
4010 |
3370 |
|
15 |
|
|
|
|
|
|
|
|
6070 |
4970 |
4150 |
|
18 |
|
|
|
|
|
|
|
|
7250 |
5920 |
4940 |
|
20 |
|
|
|
|
|
|
|
|
8030 |
6560 |
5470 |
|
25 |
|
|
|
|
|
|
|
|
|
8150 |
6790 |
|
30 |
|
|
|
|
|
|
|
|
|
|
8100 |
| m3\L\D |
2400 |
2500 |
2600 |
2800 |
3000 |
3200 |
3400 |
3500 |
3600 |
3800 |
4000 |
|
30 |
6860 |
6340 |
5890 |
5130 |
4530 |
4030 |
3620 |
|
|
|
|
|
35 |
7960 |
7360 |
6830 |
5940 |
5240 |
4650 |
4170 |
3960 |
3770 |
|
|
|
40 |
9070 |
8380 |
7780 |
6750 |
5940 |
5280 |
4720 |
4480 |
4260 |
3880 |
|
|
45 |
|
9400 |
8720 |
7570 |
6650 |
5900 |
5270 |
5000 |
4760 |
4320 |
|
|
50 |
|
|
9660 |
8380 |
7360 |
6520 |
5830 |
5520 |
5250 |
4760 |
4350 |
|
55 |
|
|
|
9190 |
8070 |
7140 |
6380 |
6040 |
5740 |
5200 |
4750 |
|
60 |
|
|
|
10000 |
8770 |
7760 |
6930 |
6560 |
6230 |
5640 |
5140 |
|
65 |
|
|
|
|
9480 |
8380 |
7480 |
7080 |
6720 |
6080 |
5540 |
|
70 |
|
|
|
|
10190 |
9010 |
8030 |
7600 |
7210 |
6520 |
5940 |
|
75 |
|
|
|
|
|
9630 |
8580 |
8120 |
7700 |
6960 |
6340 |
|
80 |
|
|
|
|
|
10250 |
9130 |
8640 |
8190 |
7410 |
6730 |
|
85 |
|
|
|
|
|
|
9680 |
9160 |
8690 |
7850 |
7130 |
|
90 |
|
|
|
|
|
|
10230 |
9680 |
9180 |
8290 |
7530 |
|
95 |
|
|
|
|
|
|
|
10200 |
9670 |
8730 |
7930 |
|
100 |
|
|
|
|
|
|
|
|
10160 |
9170 |
8330 |
|
110 |
|
|
|
|
|
|
|
|
|
10050 |
9120 |
|
120 |
|
|
|
|
|
|
|
|
|
|
9920 |
|
130 |
|
|
|
|
|
|
|
|
|
|
10710 |
|
140 |
|
|
|
|
|
|
|
|
|
|
11510 |
|
150 |
|
|
|
|
|
|
|
|
|
|
12310 |
